Point-to-Point

R5000-Mmx/5X.300.2x500.2x23

280 Mbps

3.1 - 6.4 GHz

Detailed specification

pdf, 218.25 KB

要求報價

Features

Please scroll horizontally to see the whole table.

DESCRIPTION

Description

InfiLINK 2x2 PRO R5000-Mmx/5X.300.2x500.2x23, 5 GHz point-to-point unit, net throughput up to 280 Mbps, integrated dual-pol antenna, 23 dBi, 10x10 deg

Net throughput

up to 280 Mbps

Recommended distances

up to 30 km

RADIO

Radio technology

MIMO 2x2 (OFDM 64/128)

Modulation coding schemes

from BPSK 1/2 to QAM64 5/6

Transmit power

up to 27 dBm

Frequency range

4900-6050 MHz

Channel width

5, 10, 20, 40 MHz

Antenna

23 dBi

WIRED INTERFACES

Wired Interfaces

1x GigabitEthernet (RJ45)

FORM FACTOR AND DIMENSIONS

Outdoor Unit (ODU)

305 x 305 x 68 mm, 2.5 kg

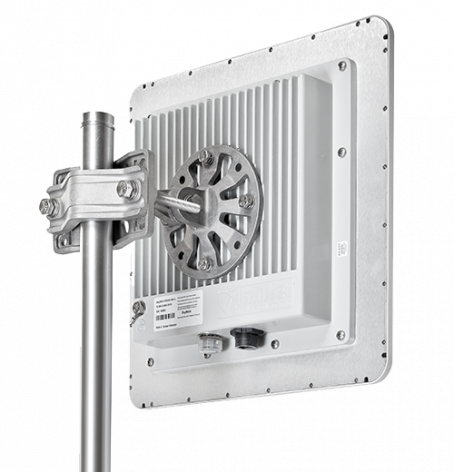

APPEARANCE

PACKING LIST

Description	Part Number	Quantity
Outdoor Unit	R5000-Mmx/5X.300.2x500.2x23	1 pcs.
Power Supply	IDU-BS-G	1 pcs.
Power Cord	IEC C13	1 pcs.
Connector	INFINET-002-P	1 pcs.
Standard RJ-45 connector	TPR-8P8C	1 pcs.
Shielded RJ-45 connector	8P8C-U-C5-SH	1 pcs.
RJ-45 Plug Cap	TPC-1G	1 pcs.
Mounting kit	MONT-KIT-85	1 pcs.
Quick Start Guide	-	1 pcs.

Detailed specification pdf / 218.25 KB
