R5000-Mmx/6X.300.2x200.2x27
Point-to-Point

R5000-Mmx/6X.300.2x200.2x27

280 Mbps
3.1 - 6.4 GHz
Detailed specification
pdf, 231.23 KB
要求報價 載入中

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiLINK 2x2 PRO R5000-Mmx/6X.300.2x200.2x27, 6 GHz point-to-point unit, net throughput up to 280 Mbps, integrated dual-pol antenna, 27 dBi, 5x5 deg
Net throughputup to 280 Mbps
Recommended distancesup to 40 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range6050-6425 MHz
Channel width5, 10, 20, 40 MHz
Antenna27 dBi
WIRED INTERFACES
Wired Interfaces1x GigabitEthernet (RJ45)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 600 x 600 x 75 mm, 6.4 kg

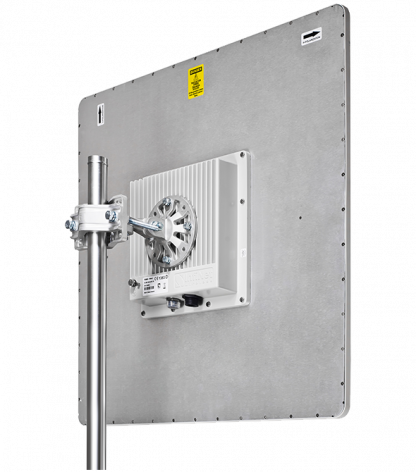

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitR5000-Mmx/6X.300.2x200.2x271 pcs.
Power Supply IDU-BS-G 1 pcs.
Power Cord IEC C13 1 pcs.
Connector INFINET-002-P 1 pcs.
Standard RJ-45 connector TPR-8P8C 1 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85S 1 pcs.
Quick Start Guide - 1 pcs.
