Point-to-Point

R5000-Smn/38.300.2x200.2x22

280 Mbps

3.1 - 6.4 GHz

Detailed specification

pdf, 232.72 KB

要求報價

Features

Please scroll horizontally to see the whole table.

DESCRIPTION

Description

InfiLINK 2x2 LITE R5000-Smn/38.300.2x200.2x22, 3 GHz point-to-point unit, net throughput up to 180 Mbps, integrated dual-pol antenna, 22 dBi, 12x12 deg

Net throughput

up to 180 Mbps

Recommended distances

up to 25 km

RADIO

Radio technology

MIMO 2x2 (OFDM 64/128)

Modulation coding schemes

from BPSK 1/2 to QAM64 5/6

Transmit power

up to 23 dBm

Frequency range

3700-3900 MHz

Channel width

3.5, 5, 7, 10, 14, 15, 20, 28, 30, 40 MHz

Antenna

22 dBi

WIRED INTERFACES

Wired Interfaces

2x FastEthernet (PoE out)

FORM FACTOR AND DIMENSIONS

Outdoor Unit (ODU)

371 x 371 x 83 mm, 2.8 kg

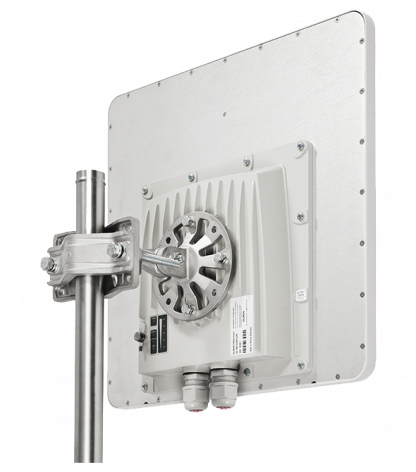

APPEARANCE

PACKING LIST

Description	Part Number	Quantity
Outdoor Unit	R5000-Smn/38.300.2x200.2x22	1 pcs.
Power Supply	IDU-CPE-G(24W)	1 pcs.
Power Cord	IEC C5	1 pcs.
Cable Gland	MG20AS-06G-XA	2 pcs.
Standard RJ-45 connector	TPR-8P8C	2 pcs.
Shielded RJ-45 connector	8P8C-U-C5-SH	1 pcs.
RJ-45 Plug Cap	TPC-1G	1 pcs.
Mounting kit	MONT-KIT-85	1 pcs.
Quick Start Guide	-	1 pcs.

Detailed specification pdf / 232.72 KB
