Point-to-Point

R5000-Smn/6X.300.2x200.2x19

280 Mbps

3.1 - 6.4 GHz

Detailed specification

pdf, 197.53 KB

要求報價

Features

Please scroll horizontally to see the whole table.

DESCRIPTION

Description

InfiLINK 2x2 LITE R5000-Smn/6X.300.2x200.2x19, 6 GHz point-to-point unit, net throughput up to 180 Mbps, integrated dual-pol antenna, 19 dBi, 16x16 deg

Net throughput

up to 180 Mbps

Recommended distances

up to 12 km

RADIO

Radio technology

MIMO 2x2 (OFDM 64/128)

Modulation coding schemes

from BPSK 1/2 to QAM64 5/6

Transmit power

up to 23 dBm

Frequency range

6050-6425 MHz

Channel width

5, 10, 20, 40 MHz

Antenna

19 dBi

WIRED INTERFACES

Wired Interfaces

FastEthernet

FORM FACTOR AND DIMENSIONS

Outdoor Unit (ODU)

209 x 206 x 72 mm, 1.0 kg

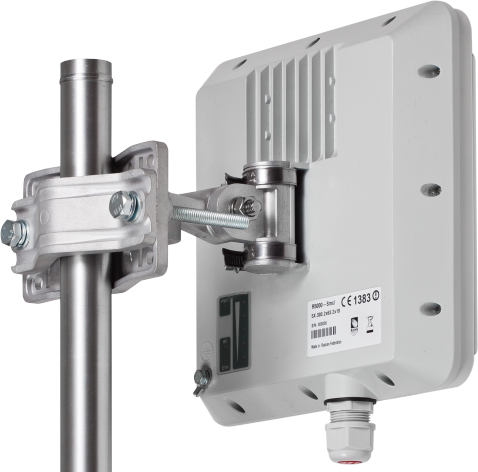

APPEARANCE

PACKING LIST

Description	Part Number	Quantity
Outdoor Unit	R5000-Smn/6X.300.2x200.2x19	1 pcs.
Power Supply	IDU-CPE-G(24W)	1 pcs.
Power Cord	IEC C5	1 pcs.
Cable Gland	MG20AS-06G-XA	1 pcs.
Standard RJ-45 connector	TPR-8P8C	1 pcs.
Shielded RJ-45 connector	8P8C-U-C5-SH	1 pcs.
RJ-45 Plug Cap	TPC-1G	1 pcs.
Clamp	TORRO 40-60/9 C7 W4 DIN 3017	2 pcs.
Quick Start Guide	-	1 pcs.

Detailed specification pdf / 197.53 KB
