Xm/2X.500.2x500.2x19
Point-to-Point

Xm/2X.500.2x500.2x19

500 Mbps
2.0 - 6.425 GHz
Detailed specification
pdf, 202.37 KB
要求報價 載入中

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiLINK XG Xm/2X.500.2x500.2x19, 2 GHz point-to-point unit, net throughput up to 500 Mbps, integrated dual-pol antenna, 19 dBi, 17x17 deg
Net throughputup to 500 Mbps
Recommended distancesup to 30 km
RADIO
Radio technologyMIMO 2x2, Cyclic single carrier
Modulation coding schemesfrom QPSK 1/4 to QAM1024 8/10
Transmit powerup to 27 dBm
Frequency range2300-2900 MHz
Channel width10, 20, 40 MHz
Antenna19 dBi
WIRED INTERFACES
Wired Interfaces2x GigabitEthernet, SFP
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 371 x 371 x 89 mm, 3.3 kg

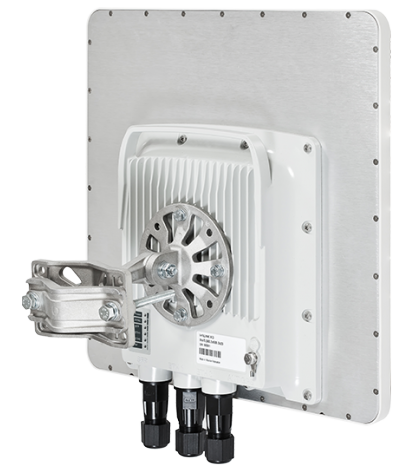

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitXm/2X.500.2x500.2x191 pcs.
Power Supply IDU-CPE-G(56W) 1 pcs.
Power Cord IEC C13 1 pcs.
Cable Gland for RJ-45 INFINET-GLAND-V1 2 pcs.
Cable Gland for optical cable INFINET-GLAND-V2 1 pcs.
Standard RJ-45 connector TPR-8P8C 2 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85 1 pcs.
Quick Start Guide - 1 pcs.

Detailed specification pdf / 202.37 KB
