R5000-Lmnc/39.300.2x200
Point-to-Multipoint

R5000-Lmnc/39.300.2x200

250 Mbps
3.1 - 6.4 GHz
Detailed specification
pdf, 214.42 KB
要求報價 載入中

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiMAN 2x2 R5000-Lmnc/39.300.2x200, 3 GHz subscriber terminal, net throughput up to 180 Mbps, 2x N-type (F) connectors for external antenna
Net throughputup to 180 Mbps
Recommended distances25+ km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range3900-4000 MHz
Channel width3.5, 5, 7, 10, 14, 15, 20, 28, 30, 40 MHz
Antenna
WIRED INTERFACES
Wired Interfaces2x FastEthernet (PoE out)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 240 x 240 x 50 mm, 1.6 kg

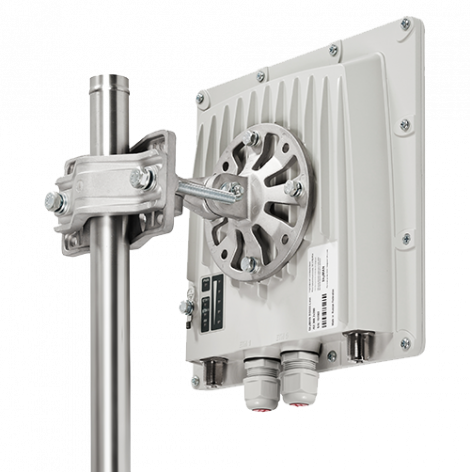

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitR5000-Lmnc/39.300.2x2001 pcs.
Power Supply IDU-CPE-G(24W) 1 pcs.
Power Cord IEC C5 1 pcs.
Cable Gland MG20AS-06G-XA 2 pcs.
Standard RJ-45 connector TPR-8P8C 2 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85 1 pcs.
Quick Start Guide - 1 pcs.
