R5000-Mmxb/38.300.2x200.2x14

Detailed specification pdf / 235.22 KB

要求報價

产品特点

Features

DESCRIPTION

Description

InfiMAN 2x2 R5000-Mmxb/38.300.2x200.2x14, 3 GHz base station sector, net throughput up to 250 Mbps, integrated dual-pol sectorial antenna, 14 dBi, 90x8 deg

Net throughput

up to 250 Mbps

Recommended distances

20 km

RADIO

Radio technology

MIMO 2x2 (OFDM 64/128)

Modulation coding schemes

from BPSK 1/2 to QAM64 5/6

Transmit power

up to 23 dBm

Frequency range

3700-3900 MHz

Channel width

3.5, 5, 7, 10, 14, 15, 20, 28, 30, 40 MHz

Antenna

14 dBi

WIRED INTERFACES

Wired Interfaces

1x GigabitEthernet (RJ45)

FORM FACTOR AND DIMENSIONS

Outdoor Unit (ODU)

371 x 371 x 90 mm, 3.4 kg

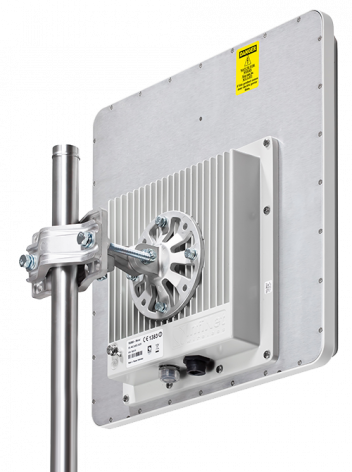

APPEARANCE

PACKING LIST

Description	Part Number	Quantity
Outdoor Unit Power Supply Power Cord Connector Standard RJ-45 connector Shielded RJ-45 connector RJ-45 Plug Cap Mounting kit Quick Start Guide	R5000-Mmxb/38.300.2x200.2x14 IDU-BS-G IEC C13 INFINET-002-P TPR-8P8C 8P8C-U-C5-SH TPC-1G MONT-KIT-85 -	1 pcs. 1 pcs. 1 pcs. 1 pcs. 1 pcs. 1 pcs. 1 pcs. 1 pcs. 1 pcs.

Detailed specification pdf / 235.22 KB
