Point-to-Multipoint

R5000-Mmxb/6X.300.2x200.2x16

250 Mbps

3.1 - 6.4 GHz

Detailed specification

pdf, 234.92 KB

要求報價

Features

Please scroll horizontally to see the whole table.

DESCRIPTION

Description

InfiMAN 2x2 R5000-Mmxb/6X.300.2x200.2x16, 6 GHz base station sector, net throughput up to 250 Mbps, integrated dual-pol sectorial antenna, 16 dBi, 90x8 deg

Net throughput

up to 250 Mbps

Recommended distances

up to 25 km

RADIO

Radio technology

MIMO 2x2 (OFDM 64/128)

Modulation coding schemes

from BPSK 1/2 to QAM64 5/6

Transmit power

up to 23 dBm

Frequency range

6050-6425 MHz

Channel width

5, 10, 20, 40 MHz

Antenna

16 dBi

WIRED INTERFACES

Wired Interfaces

1x GigabitEthernet (RJ45)

FORM FACTOR AND DIMENSIONS

Outdoor Unit (ODU)

371 x 371 x 90 mm, 3.4 kg

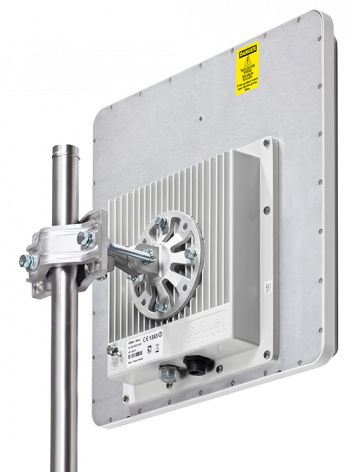

APPEARANCE

PACKING LIST

Description	Part Number	Quantity
Outdoor Unit	R5000-Mmxb/6X.300.2x200.2x16	1 pcs.
Power Supply	IDU-BS-G	1 pcs.
Power Cord	IEC C13	1 pcs.
Connector	INFINET-002-P	1 pcs.
Standard RJ-45 connector	TPR-8P8C	1 pcs.
Shielded RJ-45 connector	8P8C-U-C5-SH	1 pcs.
RJ-45 Plug Cap	TPC-1G	1 pcs.
Mounting kit	MONT-KIT-85	1 pcs.
Quick Start Guide	-	1 pcs.

Detailed specification pdf / 234.92 KB
