R5000-Smnc/39.300.2x200.2x19
Point-to-Multipoint

R5000-Smnc/39.300.2x200.2x19

250 Mbps
3.1 - 6.4 GHz
Detailed specification
pdf, 224.33 KB
要求報價 載入中

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiMAN 2x2 R5000-Smnc/39.300.2x200.2x19, 3 GHz subscriber terminal, net throughput up to 180 Mbps, integrated dual-pol antenna, 19 dBi, 17x17 deg
Net throughputup to 180 Mbps
Recommended distancesup to 10 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range3900-4000 MHz
Channel width3.5, 5, 7, 10, 14, 15, 20, 28, 30, 40 MHz
Antenna19 dBi
WIRED INTERFACES
Wired Interfaces2x FastEthernet (PoE out)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 305 x 305 x 74 mm, 2.3 kg

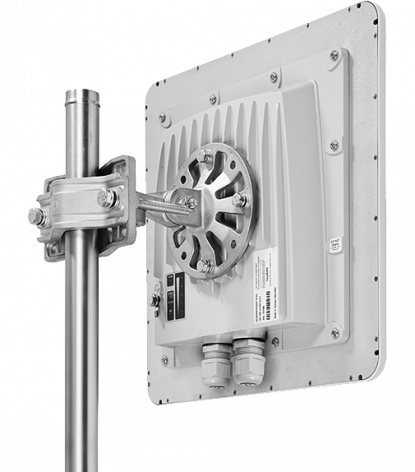

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitR5000-Smnc/39.300.2x200.2x191 pcs.
Power Supply IDU-CPE-G(24W) 1 pcs.
Power Cord IEC C5 1 pcs.
Cable Gland MG20AS-06G-XA 2 pcs.
Standard RJ-45 connector TPR-8P8C 2 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85 1 pcs.
Quick Start Guide - 1 pcs.

Detailed specification pdf / 224.33 KB
