R5000-Smnc/6X.300.2x200.2x19
Point-to-Multipoint

R5000-Smnc/6X.300.2x200.2x19

250 Mbps
3.1 - 6.4 GHz
Detailed specification
pdf, 197.49 KB
要求報價 載入中

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiMAN 2x2 R5000-Smnc/6X.300.2x200.2x19, 6 GHz subscriber terminal, net throughput up to 180 Mbps, integrated dual-pol antenna, 19 dBi, 16x16 deg
Net throughputup to 180 Mbps
Recommended distancesup to 7 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range6050-6425 MHz
Channel width5, 10, 20, 40 MHz
Antenna19 dBi
WIRED INTERFACES
Wired InterfacesFastEthernet
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 209 x 206 x 72 mm, 1.0 kg

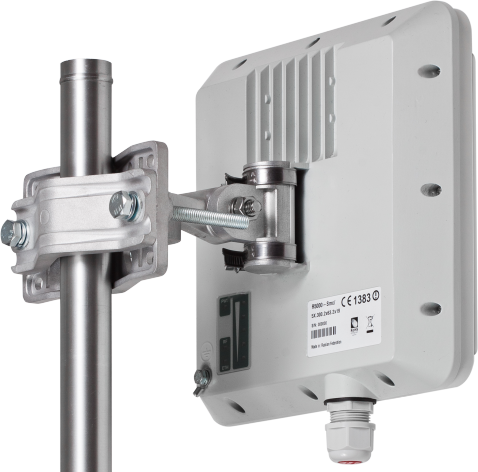

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitR5000-Smnc/6X.300.2x200.2x191 pcs.
Power Supply IDU-CPE-G(24W) 1 pcs.
Power Cord IEC C5 1 pcs.
Cable Gland MG20AS-06G-XA 2 pcs.
Standard RJ-45 connector TPR-8P8C 2 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85 1 pcs.
Quick Start Guide - 1 pcs.

Detailed specification pdf / 197.49 KB
